Biomechanics of graduated haircuts for facial contour correction

Introduction

In modern hairdressing practice, graduated haircuts are considered as controllable systems for distributing hair mass, its vectors of movement, and light-and-shadow patterns, which allows for a targeted influence on the perception of facial proportions. Despite the extensive empirical experience of stylists, the methodological basis that explains how haircut parameters are related to the mechanics of a hair bundle in a gravitational field remains fragmented, and the terminology is non-uniform. The present work introduces a biomechanical framework for designing graduated haircuts, focusing on the relationship between elevation angles, projection, internal shortening, and weight distribution with the optical correction of the facial oval, that is, with changing the perceived ratio of vertical to width, as well as with the local modulation of volume in the forehead, cheekbones, and lower third of the face.

The theoretical foundation is the physics of fibrous bundles, in which the shape of a hairstyle is described by the combined action of the elasticity of individual fibers, their natural curvature, and the randomness of their orientations, with gravity determining the envelope of the bundle. A hair ensemble has a predictable profile, determined by the competition between elasticity and weight, which makes it possible to control the position of the center of volume through controlled graduation and redirection of strands.

Materials and Methodology

The eight major scientific works on which this study has relied cover so disparate areas as mechanical properties of hair, trichoscopic density data, continuum models of bundles, and optical effects concerning the light-scattering properties of hair. Individual fiber tensile and cyclic tests up to 0.1 strain at 20°C results presented by Venkateshan et al. (2018) and Yu et al. (2017) were used in source materials; quantitative hair density by scalp zones and ethnic groups from trichoscopic analysis by Birnbaum et al. (2017); histological assessments on follicular units by Jimenez & Ruifernández (1999); mathematical model descriptions on a ponytail based on Goldstein et al. (2012); optical study results from Marschner et al., 2003 and Cloete et al., 2019.

Parameters for graduated haircuts that were compared within the analysis are key determinants: it is here that the elevation angle and projection direction influence where the volume peak lies, both in static and dynamic conditions, based on mechanical tests of single fibers and the continuum model of a hair ponytail. Data on Young's moduli and stress-strain curves (3.1–6.0 GPa) from Venkateshan et al. (2018) and Yu et al. (2017) were used together with the EI parameter, which is needed to calculate the bending moment, as well as the equation of state from the Goldstein et al. (2012) model that relates the internal curvature of fibers to pressure distribution in a bundle. A set of numerical experiments in which elevation angle (low, medium, and high values) and stationary guide displacement (forward, backward) were varied provided the ability to predict where the center of volume would be shifting as well as what would happen to the bundle's envelope profile for different parameter combinations [3; 6, p. 780].

The analysis of professional protocols for sectioning, selecting elevation angles, and cutting directions is derived from a systematic study of technique descriptions in the works of Yu et al. (2017), Venkateshan et al. (2018), and Cloete et al. (2019), who elaborated specifics of graduation for straight, wavy, and curly hair. The major design stages that were extracted are the diagnostic assessment of facial geometry and hair density, the selection of external perimeter and stationary guide, the development of a gradient sectioning scheme, and setting elevation angles and cutting directions. Based on the analysis of expert recommendations and the comparison of results from different protocols, a unified methodology was formed that ensures a predictable correction of the silhouette's vertical-to-width ratio.

Results and Discussion

In hairdressing, graduation is seen as the controlled, step-by-step shortening of internal layers relative to the external contour. The goal is simple: to redistribute the mass and trajectory of the strands so that, in static and dynamic states, the shape supports the desired facial optics. A biomechanical perspective describes each strand as an elastic keratin fiber that obeys the balance of elasticity and gravity. In a bundle, it additionally exhibits collective effects from internal curvature and friction between fibers. These factors determine where the peak of volume will occur, how quickly a strand will collapse under its weight, and how light and shadow will emphasize or soften facial features. All other things being equal, strands of the same length but with different internal curl produce different bundle envelope shapes, which are well described by the continuum model of a hair ponytail, where the profile is determined by the interaction of bending stiffness, gravity, and the random curvature of the fibers.

The length of a strand defines a lever: the greater the distance from the attachment point on the skin to the center of mass of the section, the greater the moment of the force of gravity, and the lower the peak of volume is located. The resistance to bending is determined by the classic EI, where E is the Young's modulus of the fiber and I is the moment of inertia of the cross-section, which for a hair as a cylinder or ellipse grows proportionally to the fourth power of the characteristic radius. Consequently, doubling the diameter strengthens the stiffness lever more than an increase in length increases the moment of weight. That is the reason thick, straight hair weighs down the contour much more than fine hair of the same length. At the material level, the keratin fiber shows a linear-elastic region about a few percent elongation, followed by a transformation plateau due to transitions in protein structures and a post-plateau up until rupture. The ranges of Young's moduli for human hair under controlled conditions are about 3.1–6.0 GPa (fig. 1) as verified by unified tests of single fibers, where lower moduli are related to greater elongatability up to 40 percent [7, p. 204].

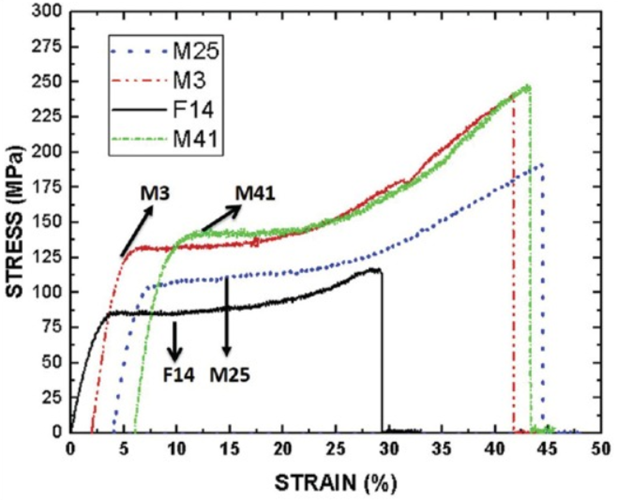

Fig. 1. Typical stress – strain plots obtained from single fiber tensile testing of human hair fibers [7, p. 204]

Additional cyclic tests show an approximate modulus value of around 4.1–4.2 GPa in the elastic region and a pronounced sensitivity to humidity and temperature. In water, the fiber diameter increases by about 10 percent, and stiffness decreases, which directly affects the position of the volume peak for the same haircut geometry, as shown in figure 2 [8, p. 152-163].

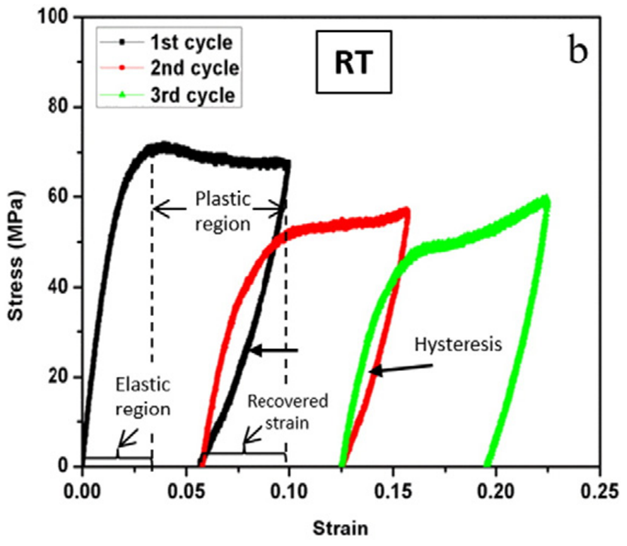

Fig. 2. Cyclic tensile tests up to 0.1 at 20°C [8, p. 152-163]

The elevation angle and projection act as tools for shifting the center of mass of the cut layer relative to the head and to the underlying layers. At low angles, close to zero, the mass remains at the perimeter, the contour is densified, and the horizontal width is enhanced. With elevation in the acute angle range, the mass is transferred higher, creating a vertical redistribution with a shift of the peak towards the crown, which visually elongates the silhouette. Projection, i.e., the redirection of sections to a stationary guide, creates a deliberate length gradient and thus a mass gradient: shifting the guide backward concentrates weight in the occipital area, while moving it forward, on the contrary, lightens the bottom and leaves a supporting framework near the face. From a mechanical standpoint, this is equivalent to changing the position of the resultant force of gravity of the layer relative to the supporting surface; the farther the resultant is from the support, the greater the bending moment and the greater the layer's contribution to local volume.

Density, elasticity, and texture determine the limits of applicability for angles and projections. With a higher areal density of fibers on the scalp, the same sectioning algorithm will produce a more pronounced volume, whereas with lower density, a more conservative cut, less thinning, and reliance on the contour will be required. Normative density values vary significantly across ethnic groups and scalp areas. According to trichoscopic analysis, average values lie approximately in the range of 148–230 hairs per square centimeter, depending on the location and group, with an observed decrease of about 0.33 hairs per square centimeter per year with age, which is essential to consider when planning the graduation framework [1, p. 304-307]. The Young's modulus of the cortex gives a good indication of how well that layer will retain the set vector after drying, and since it is best if the fiber is stiff to hold the projection and cut line, in comparison to a soft one, which sets at smaller angles with a shorter lever, causing dips in the midzone. A curly or wavy fiber has its own curvature and local internal length compression (fig. 3), so visually, dry curls are shorter than wet ones. This agrees with bundle models in which random curvature increases internal pressure and swelling of the bundle envelope under gravity and elasticity [8, p. 152-163].

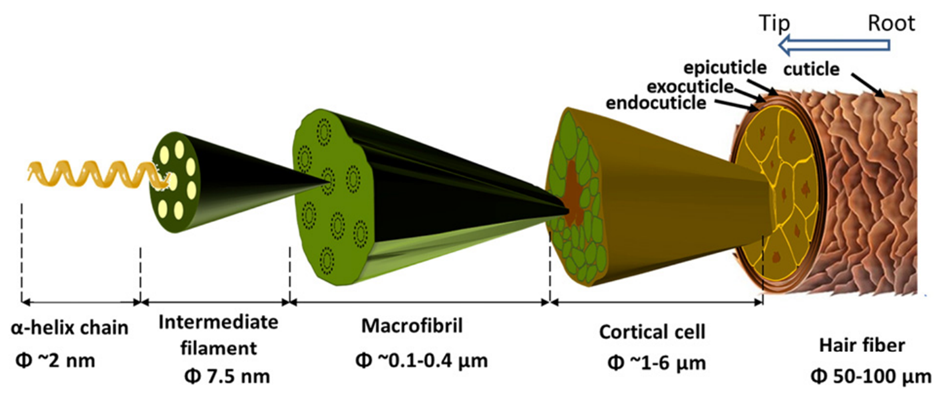

Fig. 3. Schematic representation of hierarchical structure in human hair, starting at α-helix chains and progressing to the entire section [8, p. 152-163]

In practical application, these basic relationships provide a simple rule for graduated haircuts aimed at facial contour correction. By controlling the length and elevation angle, the moment of weight, and the position of the volume peak are maintained. By choosing the projection and considering density, modulus of elasticity, and texture, a stable shape is defined that will predictably support the desired facial optics during daily styling and under changing humidity conditions.

Diagnosis begins with an assessment of facial geometry and reference points: the hairline, forehead height, zygomatic arch, angle of the mandible, and chin, as well as relative verticals and horizontals. These markers define the desired mass distribution and the position of the future volume peak. The goal is simple: to enhance or compensate for existing proportions without overloading the perimeter. Next, natural partings and cowlicks are identified; they form the initial vectors of strand movement and determine zones where the cut must account for the elastic-inertial rebound behavior of the hair.

When planning, it is essential to know where mass is available at all times. Trichoscopic data show that average hair density varies by scalp zones and between ethnic groups: in a study on a healthy population, differences between the frontal, vertex, and occipital regions were statistically significant. In a Caucasian cohort, values were approximately 214–230 hairs per cm², in a Hispanic cohort 169–178 per cm², and in an African descent group 148–160 per cm². Also, there was a mean loss of 0.33 hairs per cm² per year with age increasing. These parameters help in forming the load-bearing capacity of the haircut by zone [1, p. 304-307]. In the occipital donor area, histological assessments provide 65–85 follicular units per cm² and 124–200 hairs per cm², which is the reason why low graduations at the bottom can easily overload the contour with low density, and shifting the mass upward most often proves to be a more stable solution [4, p. 294-298]. Texture and humidity change the mechanics on the day of the cut and in daily wear, so they are considered in advance. For wavy and curly hair, the internal curvature adds internal pressure in the bundle; the visual length of dry curls is less than when wet, so a margin is left when setting the baseline length, and texturizing is moved deep into the sections to avoid frizzing the contour.

The biomechanics of volume depend on a simple equilibrium: as gravity tries to lower the center of mass of the layers, it is resisted by bending stiffness and internal curvature, resulting in an envelope with a peak of volume at equilibrium. In graduation, control is through a length gradient and through mass transfer by redirecting sections to a guide and by choice of elevation angles. The magnitudes of the effect are predictable because a validated continuum model exists for hair bundles, in which an equation of state links the pressure of the bundle to the distribution of fiber curvature [3].

The visual result is read not only by shape but also by light and shadow: hair scatters and reflects light anisotropically along the fiber axis, so the position of layers and the nature of the cut change the width and position of highlights, and thus the perceived width or height of the silhouette [6, p. 780].

The design methodology includes four steps. First, the correction goal is formulated, for example, to elongate the vertical for a round face or to soften the angles for a square one. Then, the base perimeter length is chosen, considering the available density by zone and the client's texture; the perimeter sets the external support for the mass. Next, a stationary guide and a sectioning scheme are determined; their position sets the length gradient and mass transfer: shifting the guide backward concentrates weight in the occiput and lightens the periphery near the face, while moving it forward does the opposite. Finally, the angles and cutting directions are set: low angles keep weight in the perimeter and expand the shape horizontally, medium and high angles lift the mass upward, creating a vertical vector, and diagonal projections soften the edge and build light transitions.

Practical adjustments for face types come down to controlling the position of the volume peak and the trajectory of the highlight. For a round shape, the goal is vertical elongation; high elevations in the crown area, moderate redirection backward, and minimization of mass at the cheek level are appropriate. Elongated strands are maintained near the face, and dense, straight bangs are avoided so as not to shorten the vertical. For a square shape, the task is to soften the jaw angles; diagonally descending sections with low or medium graduation work best, leaving supporting weight just above the jaw angle. The edge is softly diffused, and near the face, the lengths lead the flow vertically. For a triangular shape with a narrow forehead and a wide lower third, it is advisable to widen the top; high elevations at the crown and lightening the bottom provide the necessary contrast. A curtain bang or a soft, shortened frontal area will visually add width at the temples. For a diamond shape, the focus of mass displacement is away from the cheekbones; medium angles with redirection from the cheeks to the crown even out the silhouette. The contour near the face is not overloaded, leaving elongation below the zygomatic arch. For an elongated and rectangular shape, the goal is to shorten the vertical and add width at the sides; low angles in the temporal-side zones keep weight at the cheek level. Volume at the crown is moderate, and a dense or semi-dense bang shortens the forehead height. An egg shape welcomes calm settings; choices come from feel and the client's aims, so as not to break the already set balance. By joining checks and steps, the stylist gets an easy plan. Fullness by area shows where bulk can be safely kept. Info on wetness and feel hints at how firmly a layer will keep its reach in daily use. Face points set the wanted spot of the volume's high point and light lines. The pick of edge, guide, and cutting angles changes these starting facts into a known form that fixes the oval without odd side effects.

To work with texture, start by choosing the degree of graduation that matches the fiber’s strength and the look of bulk in motion. Straight, solid hair is typically larger in diameter and has greater bending strength. Therefore, too much inside shortness will make sharp ledges and also overfill the edge. For this type, medium graduation with diagonal projections is effective. Internal texturizing is done deeply to soften the edge without losing the supporting framework. The influence of humidity is noticeable for this group; an increase in relative humidity reduces the Young's modulus and increases elongatability. Consequently, after drying, the volume peak shifts, which requires moderate elevation angles and consideration of daily wearing conditions. These effects are confirmed by mechanical tests of single fibers at different humidity levels [8, p. 152-163].

Fine hair loses line continuity and root volume more easily, so low and medium elevation angles are preferable; mass is purposefully kept in the perimeter and at cheek level. Thinning at the edge is minimal; otherwise, the contour disintegrates. Since fine fibers become even more pliable in high humidity, the styling plan must fix the desired drying vector at the root, and a lightweight, film-forming styling product is chosen to avoid weighing down the volume. Experimental data show that an increase in humidity leads to a decrease in modulus and an increase in the deformability of hair, which explains the sensitivity of fine hair to the drying regimen [8, p. 152-163].

Wavy hair exhibits optical shrinkage due to its internal curvature, so the baseline length is set with a margin, and texturizing is moved inside the sections, reducing mass without frizzing the edge. The main task is to have the volume peak above the cheekbones, so the wave elongates the silhouette and does not widen the middle of the face. Scientific reviews on curly and wavy forms confirm that the geometric parameters of curvature are related to mechanical characteristics; this affects the behavior of the bundle in a gravitational field and the stability of the shape with changes in humidity [2].

Curly hair requires prudent mass management. Maximum graduation is shifted to the upper zones, the bottom is unloaded, and the edge remains connected. Local curvature zones are stress concentrators and characteristic breaking points, so soft cutting and styling techniques without high heat are preferred.

Bangs are used as a tool to correct the highlight trajectory and optical height. A dense, straight bang shortens the vertical, suitable for an elongated face; it forms a stable horizontal accent and covers part of the forehead, while it is important to maintain mass in the temporal-side zones for optical width. A curtain bang widens the upper third; it is effective for a narrow forehead or dominant cheekbones. The central zone is lightened, and the connection angles with the layers are soft so that the highlight moves toward the crown. An asymmetrical bang creates a controllable diagonal that shifts attention from a wide lower third and simultaneously elongates the silhouette; its parameters are chosen to continue the primary projection vector in the haircut and avoid a conflict of lines.

Technical methods produce predictable biomechanical effects. Over-direction to a stationary guide concentrates mass where it supports the correction goal; shifting the point backward strengthens the occipital framework and lightens the periphery near the face, while moving it forward does the opposite. Point cutting breaks up a hard edge and reduces the line's specularity, useful on dense, straight hair to soften optical width. Slide cutting down a strand reduces the step-like nature of transitions, redistributes mass in the mid-zone, and increases the smoothness of the fall, especially on hair with slight curvature. Internal texturizing removes mass from the depth while preserving a readable contour, a technique especially effective for wavy and curly hair, where the edge should not become frizzy. Thinning at the edge is applied sparingly; on fine and curly hair, its excess destroys the load-bearing capacity of the perimeter and causes optical gaps.

The style determines the chosen methods. Ideally, put the base path in those spots where lift is wanted, then aim the air going the same way as hair growth, not to raise the cuticle flight path broken. Research on harm done to hair while drying shows that using a hair dryer from around 15 centimeters away and keeping it moving along the strands causes less structural change than natural drying. This is an important caveat for fine and curly textures since, when wet for a longer time, more swelling reduces modulus, meaning shape sags [5, p. 455].

Straight, heavy hair responds well to light films that use elastic hold; fine hair requires the use of low-load aerosol sprays;; waves and curls love polymer gels and creams with moisture protection because they lower water sorption into the fiber and stabilize curl pattern. Home care instructions come down to the repeatability of drying vectors and moderate heat, regular adjustment of angles and mass as the hair grows, and protection from moisture at high relative humidity, since increased humidity reduces fiber stiffness and changes the position of the volume peak in daily wear.

Thus, a biomechanical approach to graduated haircuts demonstrates that a controlled combination of elevation angles, projections, length gradients, and consideration of fiber properties allows for the precise shifting of the center of volume, shaping light and shadow, and correcting the height-to-width ratio of the face.

Conclusion

In this study, a biomechanical framework for designing graduated haircuts for facial contour correction was formulated and substantiated, in which the key parameters are the elevation angle, projection, internal shortening, and mass distribution of the hair bundle. Based on the continuum model of a hair ponytail and classical concepts of the balance between elasticity and gravity, it was shown that the position of the volume peak can be predictably shifted by adjusting the lengths of the strands and the direction of their focus toward a stationary guide. This allows for the purposeful alteration of the perceived vertical-to-width ratio of the silhouette without random side effects.

The theoretical section verified that the mechanics of keratin fibers play under a linear-elastic relation at minor strains and internal curvature, friction, and humidity-induced collective effects, which increase the internal pressure of the bundle. Data attained for Young's modulus of hair (3.1–6.0 GPa) and its sensitivity to humidity prove that with unaltered haircut geometry, a change in the environment relocates the center of volume by a significant amount. This drives home the point that material science characteristics are fundamental when making choices regarding elevation angles and degrees of thinning.

The practical methodology comprises four steps: diagnostic appraisal of facial geometry and hair density; determination of the external contour and guide; scheme for sectioning and length gradient; as well as selection of elevation angles and cutting direction. It is thus systematic in its approach to haircut design while taking into consideration the characteristics of a client. It was shown that for straight, dense hair, medium angles and deep texturization are optimal. In contrast, for fine, wavy, and curly hair, a different balance between volume and contour continuity is required: low and medium elevation angles, minimal thinning at the edge, and internal texturizing deep within the sections. Such an algorithm ensures the stability of the shape in the dynamics of daily conditions and changing humidity levels.

The visual effect is achieved not only through the shape of the volume but also through light-and-shadow accents, which are determined by the mutual arrangement of layers and the nature of the cut, influencing the anisotropic reflection of light along the fiber. The management of highlights and shadows complements the optical correction of the oval, which expands the functionality of graduated techniques through a comprehensive consideration of optical and mechanical factors.

Thus, the proposed biomechanical approach integrates theoretical models and practical techniques into a unified algorithm that allows for the reliable prediction of the haircut result, adapting it to the individual parameters of the hair and face. Further development of the methodology could be directed towards refining the norms for density and Young's modulus for different client groups, creating digital tools for calculating optimal parameters and expanding experimental research on the interaction of the hair coat with technological styling products.
